POLYURETHANE SCREENS

THE FINEST QUALITY POLYURETHANE SCREENS

POLYURETHANE SCREENS

POLYURETHANE SCREENS

ULTRA DURABLE POLYURETHANE PRODUCTS

POLYURETHANE SCREENS

POLYURETHANE SCREENS

SCREENING / SIZING / DEWATERING

POLYURETHANE SCREENS
POLYURETHANE SCREENS FOR QUARRYING AND MINING

HIGH-PRECISION SCREENING
Polyurethane screen panels are a very good alternative to steel woven wire screens. The main advantages are exceptional abrasion resistance, lack of corrosion, low noise levels and exceptional precision during operation. They provide a perfect constant screening performance, do not mix fractures and do not crack under vibration. In addition, PU panels are repairable.

LONG SERVICE LIFE
Polyurethane screens offer a lifespan that is up to 10 times longer compared to woven wire screens. Therefore, they reduce operational and labour costs. On the other hand, their flexible structure allows the screen to flex and helps to reduce clogging and blinding. Lower weight also contributes to lower energy consumption in the long run.

VARIABLE SHAPES AND SIZES
We manufacture and supply polyurethane screens with different sizes, shapes, patterns and apertures.

TYPES OF POLYURETHANE SCREENS

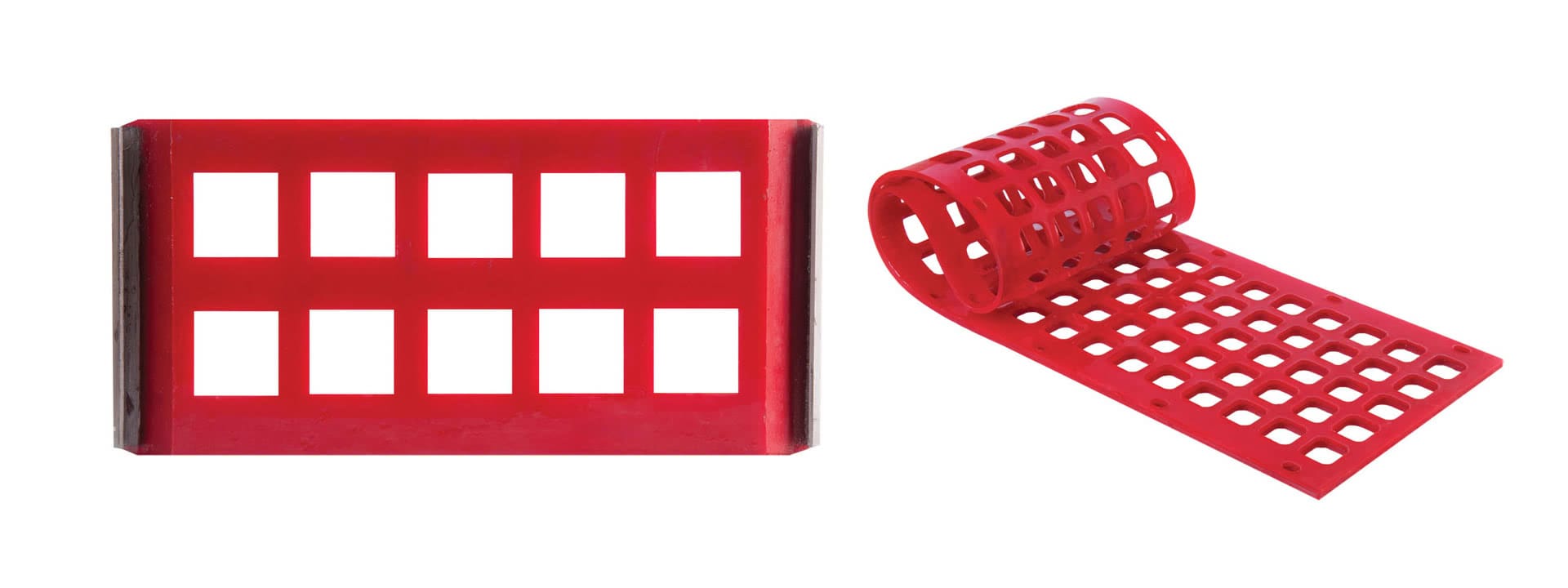

SIDE-TENSIONED POLYURETHANE SCREENS

Side-Tensioned polyurethane screens are very common and provide the best alternative to woven wire screens. These type of screens can be used in place of woven wire screens without any modifications to the screen box. The main advantages are easy retrofitting, exceptional abrasion resistance, lack of corrosion and low noise levels during operation.

We supply Aggregate and Sand Polyurethane Screens in different types for specific applications with a variety of aperture opening sizes and thicknesses.

TYPES OF POLYURETHANE SCREENS
MODULAR SCREENS

Modular polyurethane screens are suitable for a large number of applications. Their special design allows for easy installation with various connection options. Modular screens can be grooved on the sides to slide in or have special locks that fit each other. The panels can also lock onto the rails of the screen box bracing. Fitting modular screens will save you time on installation and replacement. These panels can also be changed individually without affecting others. The panels are repairable.

We supply Aggregate and Sand Polyurethane Screens in different types for specific applications with a variety of aperture opening sizes and thicknesses.

TYPES OF POLYURETHANE SCREENS
DEWATERING SCREENS

This type of screen panel performs best in fine screening and dewatering applications. Smaller modules with very small aperture sizes are cast into large frames to form a rigid large panel. These panels join together to form the screens.

We supply Aggregate and Sand Polyurethane Screens in different types for specific applications with a variety of aperture opening sizes and thicknesses.

TYPES OF POLYURETHANE SCREENS
MODULAR FLIP-FLOP/FLIP-FLOW POLYURETHANE SCREENS

This type of PU screening media is a great solution for screening sticky material. Flip-flop screen mats are flexible and move freely under the vibration of the screen box and material falling onto it. It helps to minimise clogging, especially when the material is wet. The flip-flop/flip-flow screens are light and easy to change. Thus, it will save you time on installation and replacement. These panels can be changed individually without affecting others. The panels are repairable.

We supply Aggregate and Sand Polyurethane Screens in different types for specific applications with a variety of aperture opening sizes and thicknesses.

TYPES OF POLYURETHANE SCREENS
POLYURETHANE JIG SCREENS

This type of polyurethane screens is very specific. It is designed for jigging applications to separate light and heavy particles in water.

We supply Aggregate and Sand Polyurethane Screens in different types for specific applications with a variety of aperture opening sizes and thicknesses.

TYPES OF POLYURETHANE SCREENS

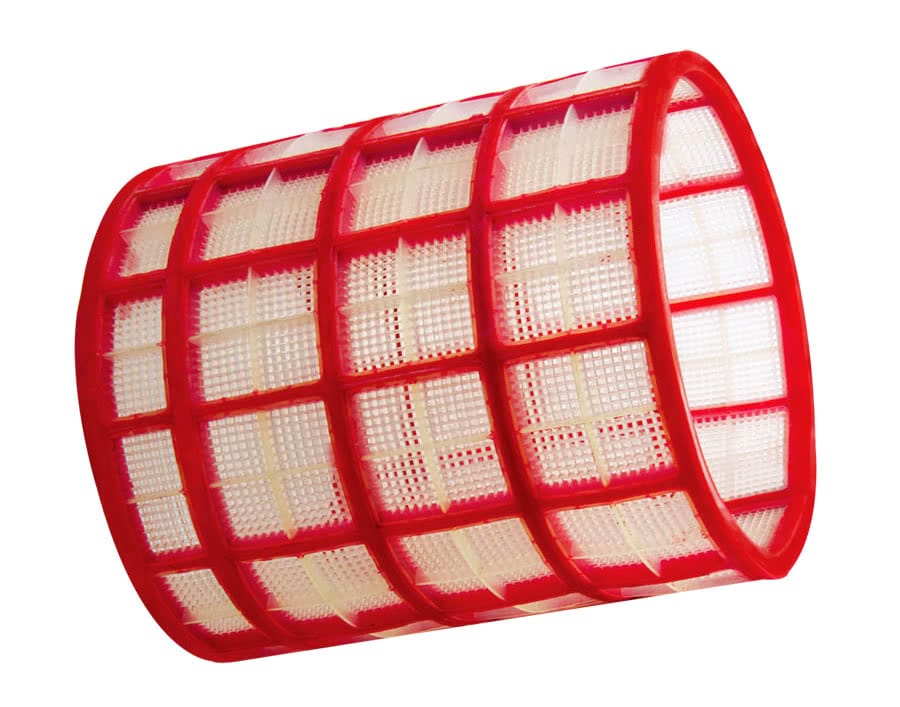

POLYURETHANE TROMMEL SCREENS

This type of polyurethane screen is designed for specific applications. Trommel PU screen media is specially designed to be used in Trommel screens. These screens provide one of the best separation efficiencies despite having a smaller overall screening surface. You can see Trommel screens perform after the mills and scrubbers or in recycling plants. The panels are repairable.

We supply Aggregate and Sand Polyurethane Screens in different types for specific applications with a variety of aperture opening sizes and thicknesses.

FEATURES & BENEFITS
Features and Benefits
  • Wide range of applications
  • Constant screen opening dimension regardless of wear
  • Low noise levels
  • Great impact resistance
  • Much smaller minimum screen opening
  • Flexible Structure
  • Low friction coefficient
  • Oil, acid and corrosive chemical resistant
APPLICATIONS
What are the Polyurethane Screens used for?
  • Screening
  • Sizing
  • Separating
  • Grading
  • Shifting
  • Washing
What are the main application areas for Polyurethane Screens?
  • Aggregate Processing
  • Washing Applications
  • Cement Manufacturing
  • Asphalt Plants
  • Mining Applications
SPECIFICATION

Aperture Sizes: From 0.15mm to 150mm (0.006” to 5.9”)
Working Temperature: From -40˚C to +80˚C (-40˚to +176˚F)
